EFSQ100-7.2

100x100 Ultraslim Downlight

Ultraslim-Downlight, 72LEDs, Cutout72 x 72mm,


Technical Characteristic

MODEL NO Finishing color Coior temperature Lamp Type LED QTY Housing Diffuser material Input Voltage Input Power Luminous Flex Luminance Efficacy Dimmable Type CRI Viewing Angle Operation Temperature Dimension	EFSQ100-7.2-CW/NW/WW White(RAL 9010/9016), Silver 2700-3500K, 4000-4500K, 5500-6500K SMD3014 LED. 72 Aluminum PMMA 90-265VAC 7.2W 450lm 60 lm/w PWM , 0-10V ,Triac >80 120 Degree -20 TO 45 100X100X30mm 72x72 mm


Dimensions

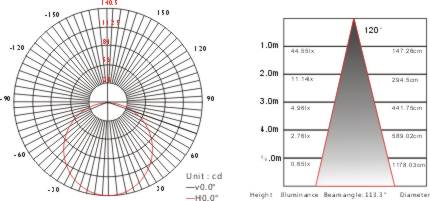

Light Distribution Curve	Lux-Distance Curve



Specification	Ies file
