EFRD220-13.2


Φ220mm Slim Downlight
Slim downlight, 132LEDs, Cutout Φ205mm, 13.2W
Technical Characteristic
MODEL NO
Finishing color
Coior temperature
Lamp Type
LED QTY
Housing
Diffuser material
Input Voltage
Input Power
Luminous Flex
Luminance Efficacy
Dimmable Type
CRI
Viewing Angle
Operation Temperature
Dimension		 EFRD220-13.2-CW/NW/WW
White(RAL 9010/9016), Silver
2700-3500K, 4000-4500K, 5500-6500K
SMD3014 LED.
132
Aluminum
PMMA
90-265VAC
13.2W
800lm
60lm/w
PWM , 0-10V ,Triac
>80
120 Degree
-20 TO 45
Φ220X18mm
Φ205mm

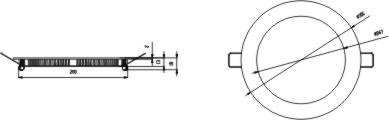

Dimensions

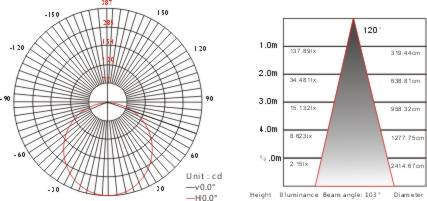

Light Distribution Curve Lux-Distance Curve
Specification Ies file
