EFRD200-14.4


Φ200mm Slim Downlight


Slim downlight, 144LEDs, CutoutΦ185mm, 14.4W

Technical Characteristic

MODEL NO
Finishing color
Coior temperature
Lamp Type
LED QTY
Housing
Diffuser material
Input Voltage
Input Power
Luminous Flex
Luminance Efficacy
Dimmable Type
CRI
Viewing Angle
Operation Temperature
Dimension		 EFRD200-14.4-CW/NW/WW
White(RAL 9010/9016), Silver
2700-3500K, 4000-4500K, 5500-6500K
SMD3014 LED.
144
Aluminum
PMMA
90-265VAC
14.4W
900lm
60lm/w
PWM , 0-10V ,Triac
>80
120 Degree
-20 TO 45
Φ200X42mm
Φ185mm

Dimensions

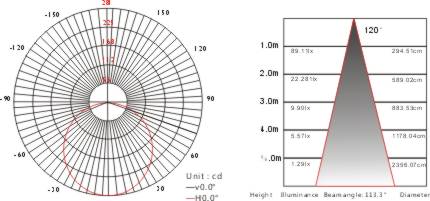

Light Distribution Curve Lux-Distance Curve


Specification Ies file
